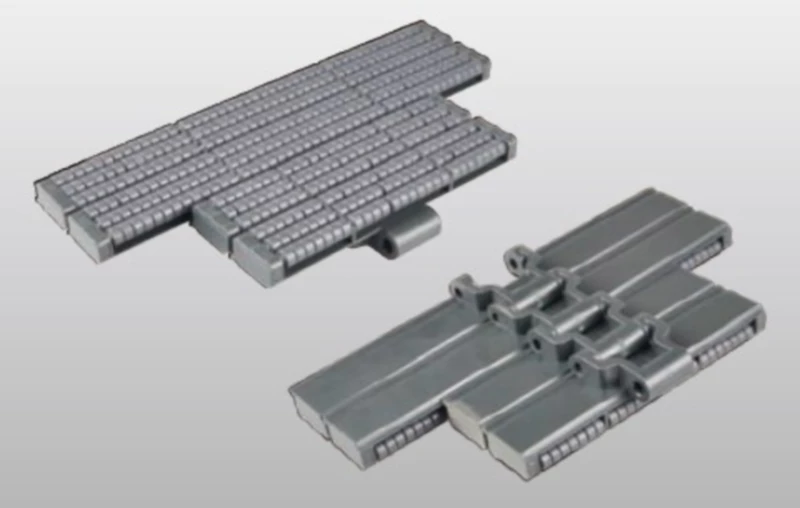

Plastic Flat Top Chains Heavy Duty Single Hinge Straight Running Chains With Low Noise Accumulation Rollers Replacement Of System Plast LBP8257 – K1000

Description

Product Overview

The LBP8257-K1000 is the 1,000 mm width variant of the heavy-duty PA66 roller accumulation chain series — the correct specification when the combination of wide format (K1000) and heavy product load (above 12–13 kg/m) makes both the standard POM roller (flat-spotting risk) and the standard single hinge design (hinge bore stress) limiting factors simultaneously. At K1000 with glass bottles in three or four files, the product load typically reaches 13–20 kg/m — above the threshold where POM roller flat-spotting becomes a maintenance problem within 12 months, and at the upper end of the load range where single hinge bore life at K1000 requires careful assessment. EverPower plastic chain Australia Pty Ltd supplies the LBP8257-K1000 as a direct replacement for System Plast LBP8257 at K1000 width.

Maximum conveyor run 12 m, working load 2,750 N, operating temperature -40 C to +90 C, 25.4 mm pitch, single hinge (heavy-duty plate), PA66 roller material, SUS304 stainless steel pins, packing 5 ft per box at 26 links per metre. Contact the EverPower Sydney team for tension calculation support before specifying LBP8257-K1000 for applications at or above 15 kg/m product load.

Technical Specifications — LBP8257 at K1000

The Load Regime Where LBP8257-K1000 Is the Correct Specification

Three or four files of 750 ml glass wine bottles across a 1,000 mm chain width produce a product load of approximately 13–18 kg/m. Four files of 700 ml glass spirits bottles (at approximately 1.8 kg per bottle, 4 files at 0.12 m/bottle) produce approximately 15 kg/m. These are the two load scenarios that drive the LBP8257-K1000 specification in the Australian market. At both of these load levels, POM rollers in the standard LBP821-K1000 develop flat-spotting within 8–12 months under sustained accumulation — a maintenance frequency that becomes operationally disruptive on high-throughput bottling lines running extended shifts.

The PA66 roller in the LBP8257-K1000 extends service life at these load levels to 24–36 months — a 2–3x improvement that eliminates roller replacement from the routine maintenance schedule and allows roller inspection to be integrated into planned annual shutdowns rather than requiring mid-year roller replacement events. The cost premium of PA66 over POM rollers is approximately 25–35% per chain metre, but the extended service life at heavy loads makes the PA66 specification more economical over a 3-year horizon by a factor of approximately 1.8–2.5.

Single Hinge at K1000: Is It Adequate?

The LBP8257-K1000 uses single hinge rather than double hinge — the opposite choice from the LBP821-K1000 (which uses double hinge with POM rollers). This is not an oversight: the LBP8257 heavy-duty plate has a reinforced link plate geometry that provides greater lateral stiffness and a larger hinge bore cross-section than the standard LBP821 plate. The larger bore cross-section reduces the contact stress at the pin-bore interface under transverse bending, extending the single hinge bore life at K1000 to approximately 18–24 months under the heavy glass bottle loads in the LBP8257 application range.

At approximately 15 kg/m and above, and at speeds above 50 m/min, the hinge bore life of the LBP8257 single hinge at K1000 begins to approach the 18-month lower end of acceptable maintenance intervals. For applications in this extreme zone, contact EverPower for a hinge bore fatigue calculation — a custom double hinge PA66 roller configuration may be warranted. For standard wine and spirits bottling at K1000 at 60 m/min, the single hinge LBP8257 at 22–28 months hinge life is the correct specification and avoids the additional cost and supply complexity of a custom double hinge PA66 build.

Australian Wine and Spirits Bottling Context

The Barossa Valley, Clare Valley, Hunter Valley, Margaret River, and McLaren Vale wine regions collectively produce a substantial proportion of Australia’s bottled wine output. Winery bottling lines in these regions typically run 750 ml glass bottle formats exclusively, with three or four-file accumulation zones as the standard buffer format between filling and packaging stations. The product load at four-file 750 ml glass (1.3 kg per bottle, 4 files at 0.12 m spacing) is approximately 17.3 kg/m.

At this product load, LBP8257-K1000 is the standard specification for new winery accumulation zone installations. The chain delivers 24–30 months of service between roller replacements — aligned with the annual maintenance shutdown that most Australian wineries schedule in the non-harvest period. The ability to inspect and replace rollers at the annual shutdown, rather than mid-season, is a significant operational advantage for wineries where the harvest season (typically March–May in South Australia, April–June in Western Australia) must run without planned maintenance interruptions.
